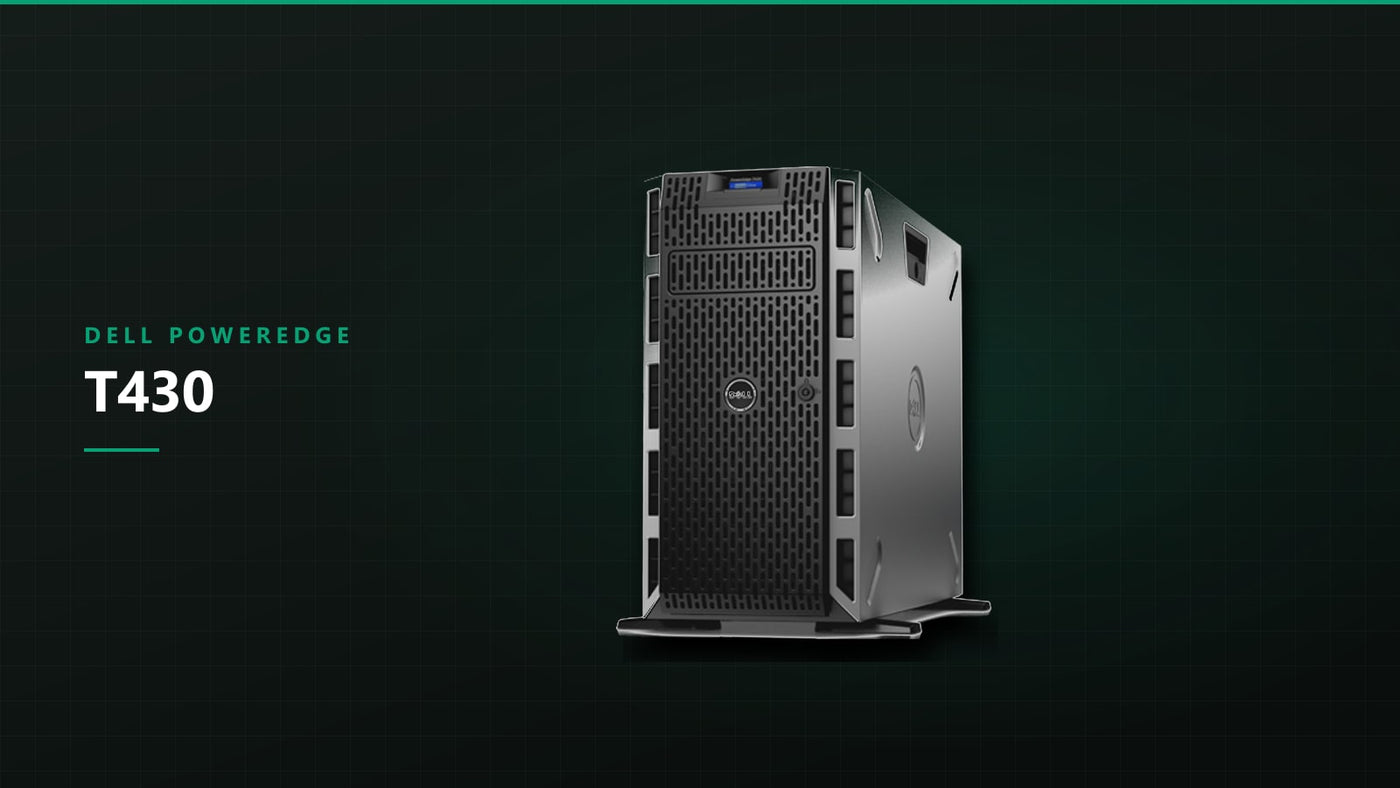

Dell PowerEdge T430: A Server That Lives Outside the Rack

The PowerEdge T430 is a two-socket, 13th-generation Dell server that happens to ship in a tower. Underneath the sheet metal it is the same platform family as the R430 and R630: Socket R3 (LGA 2011-3), Xeon E5-2600 v3 or v4 processors, registered DDR4, PERC RAID controllers, and iDRAC8 with Lifecycle Controller. What the tower chassis changes is where you can physically put the machine, how much noise it makes while running, and how many drives and cards you can attach to it.

The platform underneath

Two sockets, twelve DDR4 DIMM slots, six per processor. Each E5-2600 v3/v4 processor has four memory channels, and the six slots are not spread evenly across them: two channels get two slots each, two channels get one. That makes four identical DIMMs per socket — one per channel — the balanced population, and six per socket a capacity decision that leaves the channels uneven. Bandwidth-sensitive work notices that; a file server or a backup target will not. E5-2600 v4 parts reach 22 cores per socket and support DDR4 at up to 2400 MT/s; v3 parts top out at 18 cores and 2133 MT/s. The clock you actually get also depends on how many DIMMs sit on each channel and on the DIMM type. RDIMMs and LRDIMMs behave differently, and mixing the two in one system is not supported.

The detail that catches buyers out is the single-processor configuration. With one CPU installed, only six of the twelve DIMM slots are wired and only part of the expansion slot bank is live. Adding the second processor brings the rest online, but it needs the matching heatsink and, depending on the configuration, an additional system fan. If you expect to grow into two sockets, it is far less painful to buy the machine that way.

Top-bin processors are worth verifying rather than assuming. A tower chassis has different heatsink and airflow assumptions than a 1U machine, and Dell published supported-processor lists per chassis and fan configuration. Confirm the exact CPU model is supported for your drive layout before ordering parts.

The chassis option decides what the machine is good at

The T430 was built in three storage configurations, and this is the decision that matters most:

• Four 3.5-inch cabled drives — the entry configuration, no hot-plug.
• Eight 3.5-inch hot-plug bays — the usual capacity build: nearline SAS or SATA for file services, archives, and backup targets.
• Sixteen 2.5-inch hot-plug bays — the IOPS build: SAS SSDs or 10K drives behind a caching controller for virtualization datastores.

Converting between them afterwards means a different backplane, drive cage, and cabling, so treat it as a purchase decision rather than an upgrade path. Controller choice follows from it. An HBA330 in pass-through mode is what you want if a software-defined layer such as ZFS or Storage Spaces owns the disks. A PERC H330 gives you basic RAID with no cache. A PERC H730 or H730P adds a non-volatile write cache, which is where random-write latency on spinning disks lives or dies.

With both processors installed the T430 exposes six PCIe 3.0 slots — enough for a RAID controller, a 10GbE adapter, and a tape HBA with room left over. Half of those slots hang off the second processor, so a single-CPU machine gives you three. Two embedded gigabit ports cover basic connectivity. Power supplies are 450 W or 750 W and can be ordered as hot-plug redundant pairs.

Noise, power, and placement

This is the honest argument for a tower. A 1U chassis cools itself with 40 mm fans spinning very fast, which is fine in a data hall and intolerable in a room where people work. The T430 moves the same heat with larger, slower fans. It can sit under a desk, in a wiring closet, or in a back office without anyone filing a complaint. It still pulls air front to back, so it needs clearance at both ends rather than being pushed against a wall or boxed into a cabinet with no ventilation.

On power, the 450 W and 750 W supplies are rated for a fully loaded chassis, so a mid-range build runs with headroom. If the room already has other equipment on the same circuit, size it from Dell's energy calculator for your exact configuration rather than from the label on the supply. And if you order redundant supplies, put the two cords on separate circuits — two cables into the same power strip is not redundancy, it is tidiness.

Where it sits in the tower line

	PowerEdge T330	PowerEdge T430	PowerEdge T630
Sockets	1	2	2
Processor family	Xeon E3-1200 v5/v6	Xeon E5-2600 v3/v4	Xeon E5-2600 v3/v4
Memory channels per socket	2	4	4
DIMM slots	4	12	24
Max hot-plug drive bays	8 × 3.5in	16 × 2.5in or 8 × 3.5in	32 × 2.5in or 18 × 3.5in
Redundant hot-plug PSU	Optional	Yes	Yes

The pattern is clear enough: the T330 is a single-socket appliance for one job, the T630 is a rack server in tower clothing — twice the memory slots, twice the drives, and a rack conversion kit to match — and the T430 is the middle position, two sockets and real expansion without the bulk and power draw of the T630.

Good fits and poor fits

Good fits: a first virtualization host, or two or three of them clustered for a small office; a backup repository where 3.5-inch capacity matters more than latency; a branch-office box running directory services, file shares, and a line-of-business database; any organization that wants enterprise RAID, out-of-band management, and hot-plug parts but has no rack and no properly cooled room to put one in.

Poor fits: accelerator work of any real scale, where slot layout and power delivery push you toward a T630 or a rack chassis; workloads that want more memory than twelve slots can hold; NVMe-centric designs, since this generation is PCIe 3.0 and the T430 backplanes are SAS/SATA; and anything where being two processor generations behind on per-core performance will be a problem within the machine's service life.

Where to go from here

If a two-socket tower is the right shape for the job, look through the current PowerEdge T430 configurations and compare the drive-bay layouts side by side — that is the field you cannot change later. If the memory footprint or the drive count runs past what the chassis holds, the T630 is the next step up in the same generation. Once you know the processor pair, memory population, controller, and NICs you want, send the list through on request a quote. Tell us the workload alongside the parts list; it is usually faster for us to sanity-check a configuration against what the chassis actually supports than for you to chase Dell's compatibility matrices.
