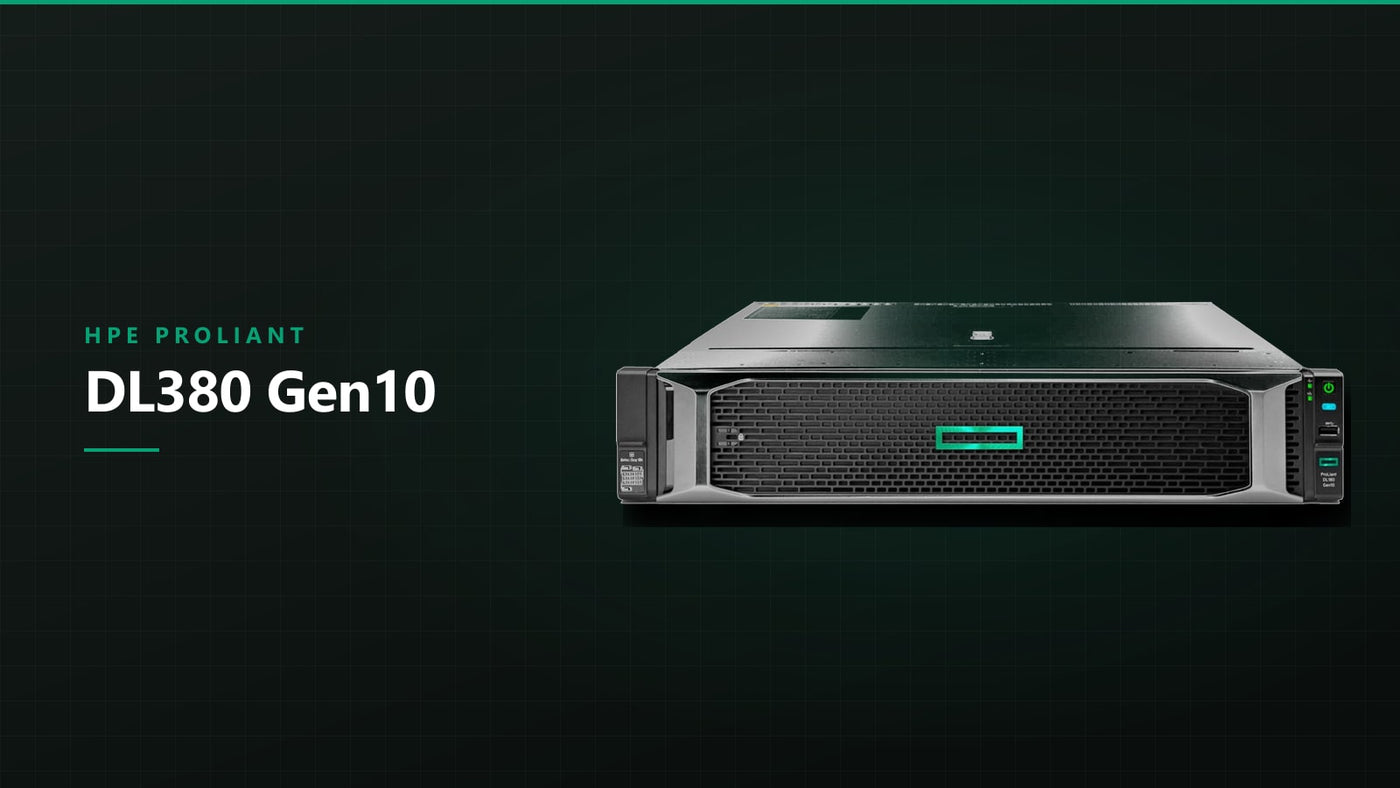

HPE ProLiant DL380 Gen10: Why It Became the Default 2U

The HPE ProLiant DL380 Gen10 became the default 2U in a very large number of environments, and it did not get there by being the fastest server of its era. It got there because the chassis absorbs a change in workload without forcing a change in platform. The same box takes hypervisor clusters, backup repositories, file services, and the one database instance nobody is allowed to touch, and the parts you would need to move between those roles are all catalog options rather than a different server.

The platform underneath

Gen10 is a dual-socket design on Socket P (LGA 3647), built for 1st generation Xeon Scalable (Skylake-SP) and 2nd generation Xeon Scalable (Cascade Lake). The top bins in both families reach 28 cores, which puts 56 cores and 112 threads into two rack units when both sockets are filled. The board accepts processors up to 205 W TDP, but that ceiling is conditional: high-TDP parts require the high-performance heatsinks and, in most configurations, the high-performance fan kit as well. If you are evaluating a unit built around 85–125 W Gold parts and plan to move to something hotter later, plan for the thermal hardware at the same time. Both sockets must carry the identical processor model.

Six memory channels per socket is the real story

Gen9 gave each processor four memory channels. Gen10 gives six, with two DIMM slots per channel — twelve slots per CPU, twenty-four in the chassis. Registered and load-reduced DDR4 runs at up to 2666 MT/s with 1st generation processors and up to 2933 MT/s with 2nd generation Gold 6200 and Platinum 8200 parts; Silver 4200 and Gold 5200 SKUs top out below that, so the processor you pick also sets the memory speed you get. Fill all twenty-four slots with 128 GB LRDIMMs and you reach 3 TB. Cascade Lake configurations also support Intel Optane persistent memory in the 100 series, which is relevant for in-memory databases and large VDI hosts.

Two rules save a lot of troubleshooting. First, a single-CPU DL380 Gen10 only lights up twelve of the twenty-four slots — the second bank is wired to socket two, so a one-processor build has half the memory ceiling and half the channels. Second, populate one DIMM per channel across both sockets before doubling up. Six identical modules per CPU is the balanced starting point, and an unbalanced population quietly costs you bandwidth that extra capacity does not make up for.

Pick the front end deliberately

The chassis ships in several drive configurations, and converting between them after the fact is more involved than people expect. Common front ends are 4 LFF, 12 LFF, 8 SFF, 16 SFF (two 8-bay cages), and 24 SFF. Optional rear drive cages add either two SFF bays or three LFF bays, depending on which kit is fitted. The Universal Media Bay adds front VGA, USB, and an optical drive slot for shops that still image locally. Going from 8 SFF to 24 SFF means new cages, new backplanes, new cabling, and usually a different controller — a hardware rebuild, not a configuration change.

On the controller side, the embedded S100i handles software SATA, the E208i-a and P408i-a cover most RAID requirements (the P408i-a with 2 GB flash-backed write cache is the common choice), and the P816i-a, with sixteen internal ports, is what HPE pairs with a 24-bay chassis so it can run from a single controller. For vSAN, Ceph, or ZFS, use an HBA or put the Smart Array into HBA mode so the software layer sees raw devices rather than single-drive RAID 0 volumes.

Expansion, networking, and iLO 5

With all three risers installed, the chassis offers up to eight PCIe 3.0 slots; the secondary and tertiary risers require the second processor to be populated. The FlexibleLOM slot is a genuinely useful detail — it takes 4x1GbE, 2x10GbE SFP+, or 25 GbE adapters without consuming one of the standard slots, so a dual-10G host still has every PCIe slot free for HBAs or accelerators. Double-wide accelerators are supported with the correct riser, power, and cooling configuration.

Management is iLO 5, which adds HPE's silicon root of trust — firmware is validated against immutable silicon at boot. Remote console and virtual media require an iLO Advanced license; the hardware is always there, the entitlement may not be, so confirm it on any secondhand unit. Firmware is delivered through Service Pack for ProLiant, and HPE gates some firmware downloads behind an active support entitlement. Factor that into your patching plan rather than discovering it during a maintenance window.

How it sits next to its neighbors

The Gen10 sits between a platform that is memory-bandwidth constrained and one that requires more rack-level change to adopt:

Spec	DL380 Gen9	DL380 Gen10	DL380 Gen10 Plus
Processors	Xeon E5-2600 v3 / v4	Xeon Scalable 1st / 2nd gen	Xeon Scalable 3rd gen
Socket	LGA 2011-3	LGA 3647	LGA 4189
Max cores per socket	22	28	40
Memory channels per CPU	4	6	8
DIMM slots	24	24	32
Max DDR4 speed	2400 MT/s	2933 MT/s	3200 MT/s
PCIe generation	3.0	3.0	4.0
Max PCIe slots	Up to 6	Up to 8	Up to 8
Management	iLO 4	iLO 5	iLO 5

Where to go from here

If you are standardizing on one 2U platform for virtualization or general consolidation, the Gen10 is the safe center of the range: enough memory channels to feed modern core counts, enough drive and slot options to cover storage and network roles, and a firmware and driver ecosystem that is thoroughly documented. Browse the DL380 Gen10 configurations to see the CPU, memory, and drive combinations we build, or look at DL380 Gen9 if the target is a backup repository or lab tier where the older platform is the better fit. When you know the shape you need — core count, memory footprint, bay count, network speed — put it together on the Build Your Server page and send it over for a quote.
