Planning a 42U Rack: Depth, Power and Weight

Rack problems are measurement problems discovered late. The rack that will not close because a server plus its cable arms need 90cm; the PDU with two outlets left and three machines to go; the beautiful build on a floor rated for less than it now holds. Every one of them is preventable with twenty minutes of arithmetic before anything ships.

Depth: the ambush measurement

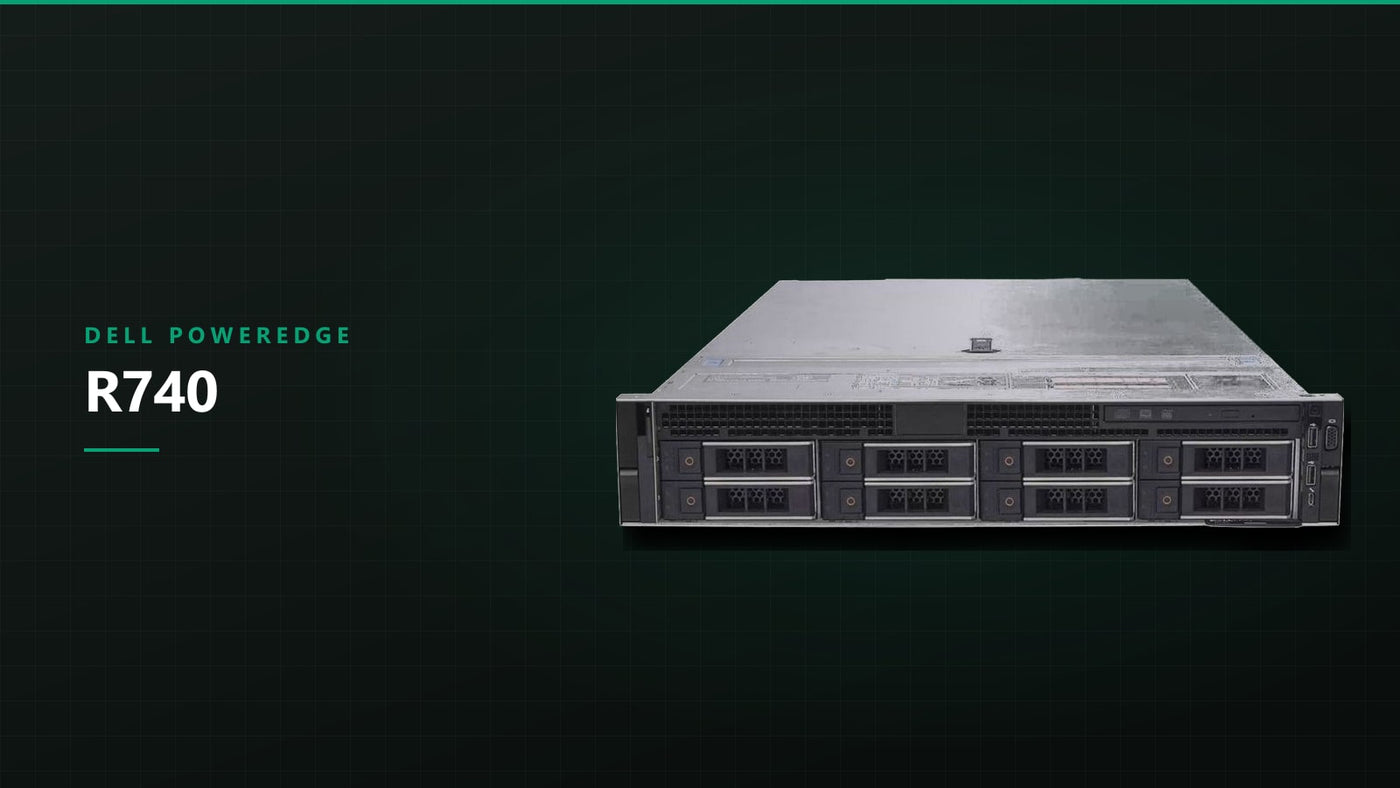

Rack U counts height; depth is what catches people. Modern 2U servers run 70–77cm long, rails want mounting posts set correctly, and rear clearance must swallow power cords, cable-management arms (add ∼15cm when used) and PDU bodies. The working rule: enclosed racks of 100–107cm depth for standard server fleets; 60–80cm racks are for network gear and shallow nodes only. Before buying any rack, take the longest server on the roster and add 20cm — that is your minimum, front door to rear door.

Power: outlets, circuits, headroom

Count both ends. Dual-PSU machines want two outlets each on separate PDUs fed — ideally — from separate circuits, so one breaker never darkens both supplies. Sum realistic draw (measured or generously estimated per box: a loaded 2U at 250–400W, storage-heavy units more) and keep steady load under 80% of circuit rating. A single domestic 16A/230V circuit honestly supports roughly 8–10 modest servers — less than a full rack fantasy assumes. Metered PDUs pay for themselves the first time you wonder where the budget went; C13 vs C19 outlet counts should match your actual cords, not hope.

Weight: the floor is a component

A 42U loaded with 2U servers, storage and UPS units lands between 350 and 700kg on four casters — concentrated point loads a concrete slab shrugs at and a wooden office floor may not. Check ratings for raised floors and upper storeys; load heavy items (UPS, disk shelves) at the bottom regardless, both for stability and for the day the rack rolls. Rails, not shelves, for anything with hot-swap parts.

Airflow and the rest

Front-to-back is the law: blanking panels in every empty U (open gaps recirculate hot exhaust straight into intakes), solid sides or gap sealing, and if the room allows, a cold-front orientation away from walls. Leave 1U near the top for network gear where cable runs shorten, reserve bottom U-space for future UPS growth, and label both cord ends the day you install them. None of this is glamorous — which is exactly why the racks that get it right are the ones nobody ever has stories about.
