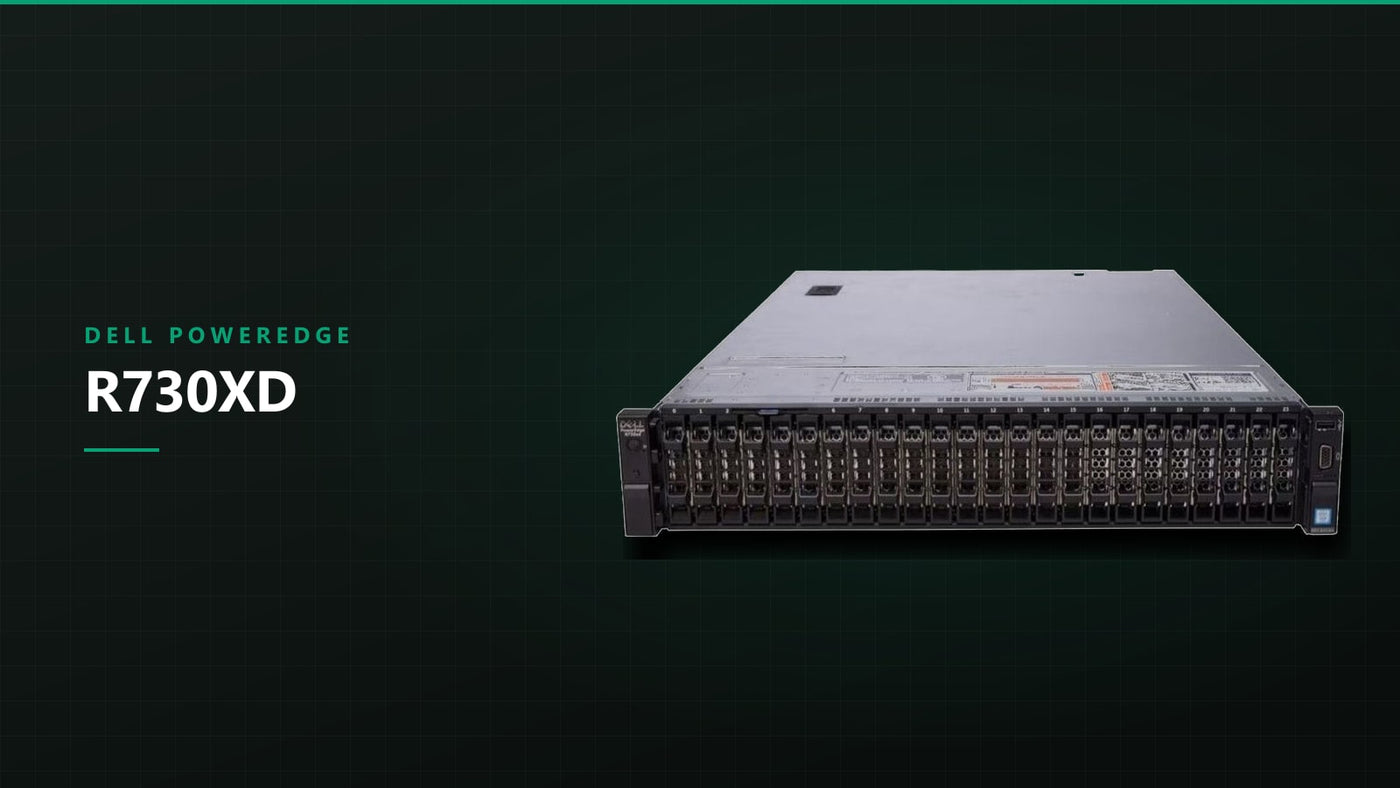

Dell PowerEdge R730xd: The Storage Workhorse Explained

The PowerEdge R730xd is Dell's 13th-generation 2U storage platform: two Intel Xeon E5-2600 v3 or v4 processors on LGA 2011-3, 24 DDR4 DIMM slots, and up to six PCIe 3.0 slots when both sockets are populated. The reason the model exists is the front of the chassis. A standard R730 stops at 16 small-form-factor bays; the xd variant carries 24 front SFF bays or 12 front LFF bays, adds a two-bay 2.5-inch rear flex bay, and on some large-form-factor configurations a four-drive mid-plane on top of that.

The chassis is the product

Everything else on this platform is negotiable. The bay layout is not, because the backplane, drive cage, and front assembly are specific to each variant and are not something you swap on a Tuesday afternoon. Verify the chassis matches the drive plan before anything else.

Front bays	Mid-plane	Rear flex bay	Typical use
12 × 3.5 in	—	2 × 2.5 in	Bulk capacity with a mirrored boot pair in the rear
12 × 3.5 in	4 × 3.5 in	2 × 2.5 in	Maximum spindle count per rack unit
24 × 2.5 in	—	2 × 2.5 in	IOPS-oriented builds on 10K SAS or SAS/SATA SSD
24 × 2.5 in, four bays NVMe-capable	—	2 × 2.5 in	Flash cache or write tier in front of SAS capacity

The rear flex bay is the detail worth planning around. Two 2.5-inch SSDs back there give you a mirrored operating system or hypervisor volume while leaving all twelve front LFF bays for data. The 13th generation predates Dell's BOSS card, so the alternatives are the internal dual SD module for a hypervisor boot image or simply giving up two front bays — neither is as clean.

Controllers decide what the box can be

Four options cover nearly every R730xd in service. The PERC H730 carries 1 GB of non-volatile cache and the H730P carries 2 GB; both do RAID 0, 1, 5, 6, 10, 50, and 60 in hardware. The H830 is the external variant for attached JBOD enclosures. The HBA330 is a 12 Gb/s SAS host bus adapter with no cache and no RAID logic at all.

If ZFS, Ceph, Storage Spaces, or vSAN is going on top, buy the HBA330. Putting a PERC into non-RAID mode looks like a pass-through and is not the same thing — the controller still sits between the software and the drive, and those stacks are built on the assumption that they own the disk, including its full error and health reporting. It is a common ordering mistake on this platform, and an awkward one to discover after the array is already populated.

If you are running hardware RAID, check the cache battery. The H730 family backs its write-back cache with a battery module; when that module ages out, the controller quietly drops to write-through and the whole server feels inexplicably slow. Also keep the controller's ceiling in mind: the eight 12 Gb/s SAS lanes between controller and backplane — the 24-bay chassis fans them out through an expander — give roughly 9.6 GB/s of theoretical bandwidth, and twenty-four SATA SSDs can collectively ask for more than that. For spinning disks it is a non-issue. For an all-flash build it is the design constraint.

Memory, CPU, and the parts people over-specify

Twenty-four DIMM slots means twelve per socket across four channels. With v4 processors the memory tops out at 2400 MT/s on the SKUs rated for it, and filling the third DIMM per channel drops the clock, so sixteen modules at two per channel is the configuration to target. The platform reaches 1.5 TB with 64 GB LRDIMMs if you genuinely need it.

Storage duty is more memory-sensitive than people expect and less CPU-sensitive. Ceph's BlueStore OSDs default to a 4 GiB memory target each, so a twelve-drive node wants roughly 48 GB just for OSD processes before the operating system, monitors, or anything else. OpenZFS sizes its ARC as a share of system RAM, so capacity translates fairly directly into read cache. Meanwhile the processors are mostly handling interrupts and checksums. A pair of 12-core E5-2650 v4 chips at 105 W each is plenty for a repository or a file server, and it keeps the thermal and power envelope sane. Save the 145 W parts for boxes that actually compute.

Rebuild windows and other build notes

Do the rebuild arithmetic before choosing a RAID level. A 10 TB nearline drive has to be rewritten in full after a failure. Even at an optimistic sustained 150 MB/s with no competing I/O, that is more than eighteen hours of degraded operation — and a repository under load will not give you 150 MB/s. That is the argument for RAID 6 over RAID 5 on high-capacity disks, for a dedicated hot spare, and for splitting twelve bays into two narrower arrays rather than one wide one.

A few other things worth knowing: iDRAC8 requires an Enterprise license for virtual console and virtual media, which you will want on a machine that lives in a colocation rack. Installing third-party PCIe cards triggers iDRAC's default cooling response and ramps the fans; there is a setting for it, and it is worth finding before the noise complaints start. Network daughter card options run from four 1 GbE ports to four 10 GbE ports, and the rNDC does not consume a PCIe slot. Finally, several riser configurations only light up their slots when the second processor is installed — if a single-socket build is being considered, count the slots you actually get.

Where to go from here

The R730xd is still one of the most sensible 2U storage chassis you can rack, provided the workload is bounded by disks and network rather than per-core throughput. Look through the available Dell PowerEdge R730xd systems to see which bay layouts and controller combinations are on hand. If you need six memory channels per socket, more than four NVMe bays, or a dedicated M.2 boot device, the R740xd is the successor to look at. Either way, if the exact combination of processors, memory, controller, and drive cage matters, put it together on the build your server page and send the configuration over for a quote.
