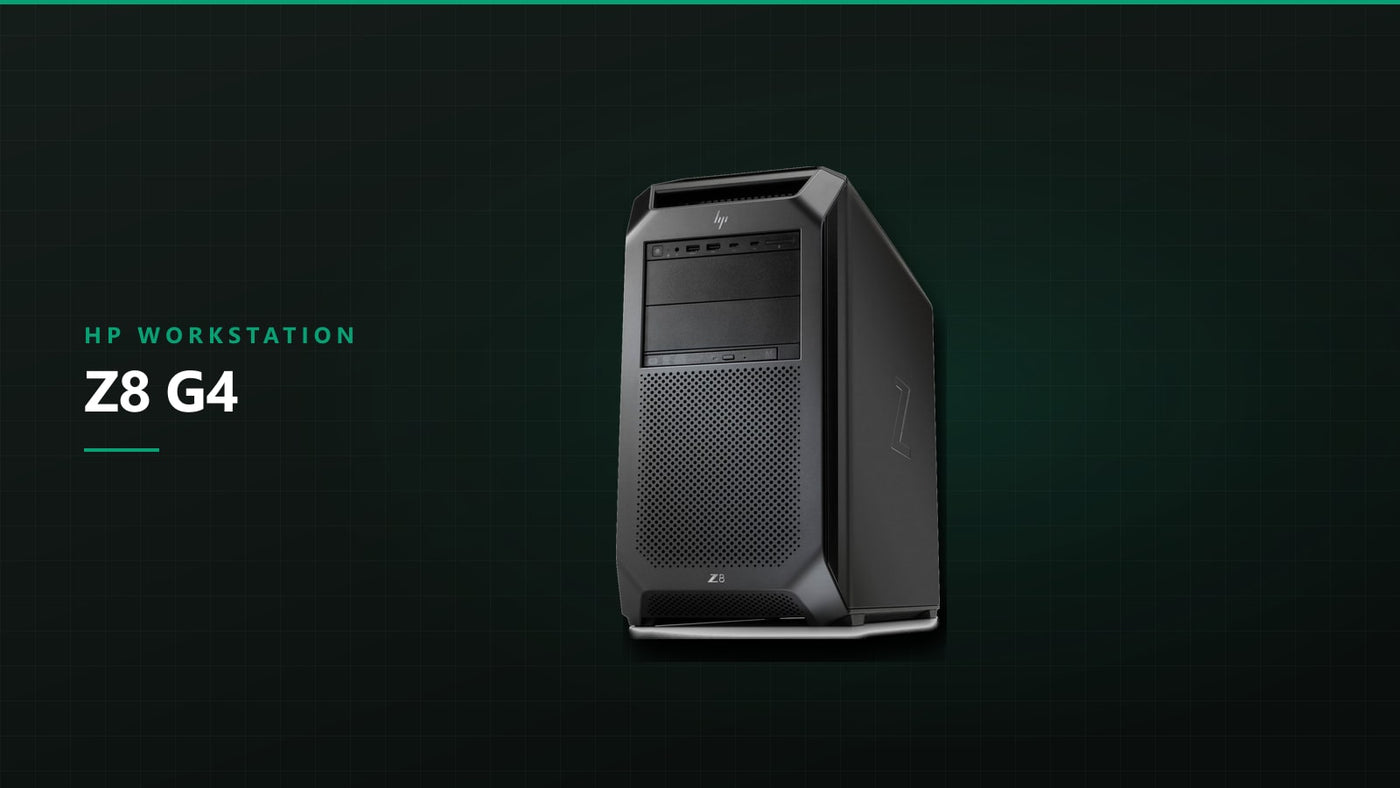

HP Z8 G4: A Workstation With Server DNA

The HP Z8 G4 is a two-socket server board that HP made quiet enough to sit under a desk. Same LGA 3647 socket as the rack machines of its generation, same Intel C622 chipset, same registered ECC DDR4, same six memory channels per processor. What changes is the packaging: a tool-less tower, large low-RPM fans instead of the 40 mm fans a 1U chassis spins at several thousand RPM, and full-height PCIe slots that take a double-wide GPU on the system's own auxiliary power cabling rather than a server GPU enablement kit.

That combination is why the Z8 G4 still turns up in shops that need server-class memory capacity and PCIe headroom but cannot put the machine in a cabinet at the other end of the building.

What it inherits from the server side

Two LGA 3647 sockets accept first-generation (Skylake-SP) and second-generation (Cascade Lake) Xeon Scalable processors at up to 28 cores each ? 56 cores and 112 threads in one chassis. Every socket brings six DDR4 memory channels and 48 PCIe 3.0 lanes, so a dual-CPU machine has 12 channels and 96 CPU-attached lanes in play.

Memory is the headline. The board carries 24 DIMM slots, two per channel, which is rack-server density in a tower: twenty-four 64 GB LRDIMMs land at 1.5 TB. The per-socket processor limits sit alongside that number rather than under it ? standard Skylake-SP SKUs address 768 GB per socket, which is exactly 1.5 TB across two, while standard Cascade Lake SKUs go to 1 TB per socket and the M and L suffix parts higher still. Passing 1.5 TB in this chassis therefore needs both larger modules and a processor that allows them, so confirm the combination against the QuickSpecs for your board revision before ordering.

Speed follows the CPU as well, and it follows the population order too. First-generation parts top out at 2666 MT/s and the upper second-generation SKUs at 2933 MT/s ? but 2933 applies at one DIMM per channel. Populate the second slot on every channel, which is exactly what filling all 24 slots means, and Cascade Lake steps back to 2666. Bronze and Silver parts run slower than either figure regardless of which DIMMs you install.

Expansion is where the workstation lineage turns into an advantage. NVMe usually arrives on HP's Z Turbo Drive M.2 carrier cards, and the slot layout is built around full-length graphics ? the thing a 1U server cannot do at all and a 2U does only with the right riser, the right shroud, and often a GPU enablement kit. The high-output supply for this chassis is rated 1700 W and is specified to deliver its full output on a 200?240 V feed, which is worth confirming before you plan a multi-GPU build against a 120 V office circuit.

What it deliberately does not inherit

This is where buyers get surprised. A Z8 G4 is not a server in the operational sense:

• No baseboard management controller. There is no out-of-band console, no IPMI, no Redfish, no remote power control on a dedicated management NIC. HP's ZCentral Remote Boost (the former Remote Graphics Software) is a remote desktop protocol that runs inside the operating system. It is good at what it does, but it cannot rescue a host that is hung at POST.
• One power supply. Non-redundant, not hot-swappable.
• No hot-swap drive backplane in the standard configuration. Drives live inside the chassis. Replacing one means opening the side panel and taking the machine down.
• Tower geometry. It has a tower's footprint and a tower's intake pattern, not a shallow chassis built around cabinet front-to-back airflow.

None of that is a defect ? it is the trade HP made to get a two-socket platform into a room with people in it. But if your runbook assumes you can power-cycle the box from a phone at 2 a.m., plan for an IP KVM or a switched PDU alongside the machine.

Z8 G4 versus a 2U rack server of the same generation

Dimension	HP Z8 G4	Typical 2U dual-socket server
Sockets / CPU family	2 ? LGA 3647, Xeon Scalable gen 1?2	2 ? LGA 3647, Xeon Scalable gen 1?2
Memory topology	24 DIMM slots, 12 channels, DDR4 ECC	24 DIMM slots, 12 channels, DDR4 ECC
Out-of-band management	None	BMC with IPMI / Redfish, virtual media, remote power
Power supplies	Single, non-redundant	Dual, hot-plug
Drives	Internal, no hot swap in standard trim	Hot-plug bays on a backplane
GPU support	Full-length double-wide on system auxiliary power	Riser-dependent, often needs a GPU enablement kit
Acoustics	Office	Equipment room
Mounting	Tower	Rails, ~750 mm cabinet depth

Where the Z8 G4 earns its place

Three profiles come up repeatedly. The first is simulation and rendering: FEA, CFD, photogrammetry, and CPU renderers all want many cores plus a large working set, and 12 populated channels feed 56 cores far better than a desktop platform with four channels ever will.

The second is GPU work that needs the card, not the density. One or two full-length double-wide accelerators drop into a Z8 G4 on the system's own auxiliary power cabling with no riser gymnastics, and the machine stays usable in a room with people.

The third is the office hypervisor. Plenty of teams run ESXi, Proxmox, or Hyper-V on a Z8 G4 because the memory capacity is there and there is nowhere to put a screaming 2U. It works ? just close the management gap deliberately rather than discovering it during an outage.

Checking a used one before it ships

• Matched CPU pair. Both sockets need the same SKU and the same TDP class. A second CPU without its heatsink and air baffle is not a working second CPU.
• DIMM population. Balanced across all six channels per socket before you double up ? and remember that filling the second slot on every channel gives up the 2933 MT/s grade on Cascade Lake. An unbalanced fill quietly costs bandwidth on exactly the workloads that justified the machine.
• Power supply rating versus GPU plans. Confirm the installed unit, the available auxiliary connectors, and the circuit you intend to run it on ? the 1700 W unit needs a 200?240 V feed to deliver its rating.
• Storage carriers. Z Turbo Drive carrier cards, drive trays, and SATA cabling are frequently missing from machines that were stripped before resale.
• BIOS level. Second-generation Xeon Scalable support requires a firmware revision that supports it; verify before pairing a Cascade Lake pair with an older board build.

Where to go from here

If the Z8 G4 profile matches your workload, our refurbished workstations collection is where these dual-socket towers and their single-socket siblings live. If you would rather specify the machine yourself ? CPU pair, DIMM population, storage layout, GPU ? build it on the Build Your Server page and send the configuration over for a quote. Tell us the workload and the room it has to live in; those two facts decide most of the remaining choices.
