Rack, Tower or Blade: Matching the Chassis to the Room

Most chassis arguments are really arguments about the room. A rack server assumes a 19-inch cabinet, front-to-back airflow, and a PDU. A tower assumes floor space and an ordinary wall outlet. A blade chassis assumes a data center and enough nodes to justify the shared infrastructure. Pick the one your building can actually feed and cool, then worry about CPUs.

Rack servers: the default when there is a cabinet

Rack servers follow the EIA-310 19-inch standard and mount on a four-post cabinet using model-specific rails. Height is measured in rack units of 1.75 inches, so a 1U, 2U, or 4U label tells you a great deal about slot count and drive bays before you read anything else.

Two physical checks come first. Depth: most 2U dual-socket servers are roughly 700 to 800 mm deep excluding the bezel, so a 1,000 mm or deeper cabinet is normal once cable management and power whips are added. Airflow: rack servers pull cool air through the front bezel and exhaust to the rear, which only works if the cabinet is in a hot-aisle/cold-aisle arrangement or at least has an unobstructed exhaust path. A rack server in a closed cabinet against a wall will run its fans hard and shorten its own life.

Power is the third check. Cabinets are normally fed from 208 V circuits through a rack PDU, and it is the circuit capacity, not the empty rack units, that determines how many servers fit. Our rack server inventory spans 1U through 4U, and the right height is usually decided by drive count and expansion slots rather than CPU choice.

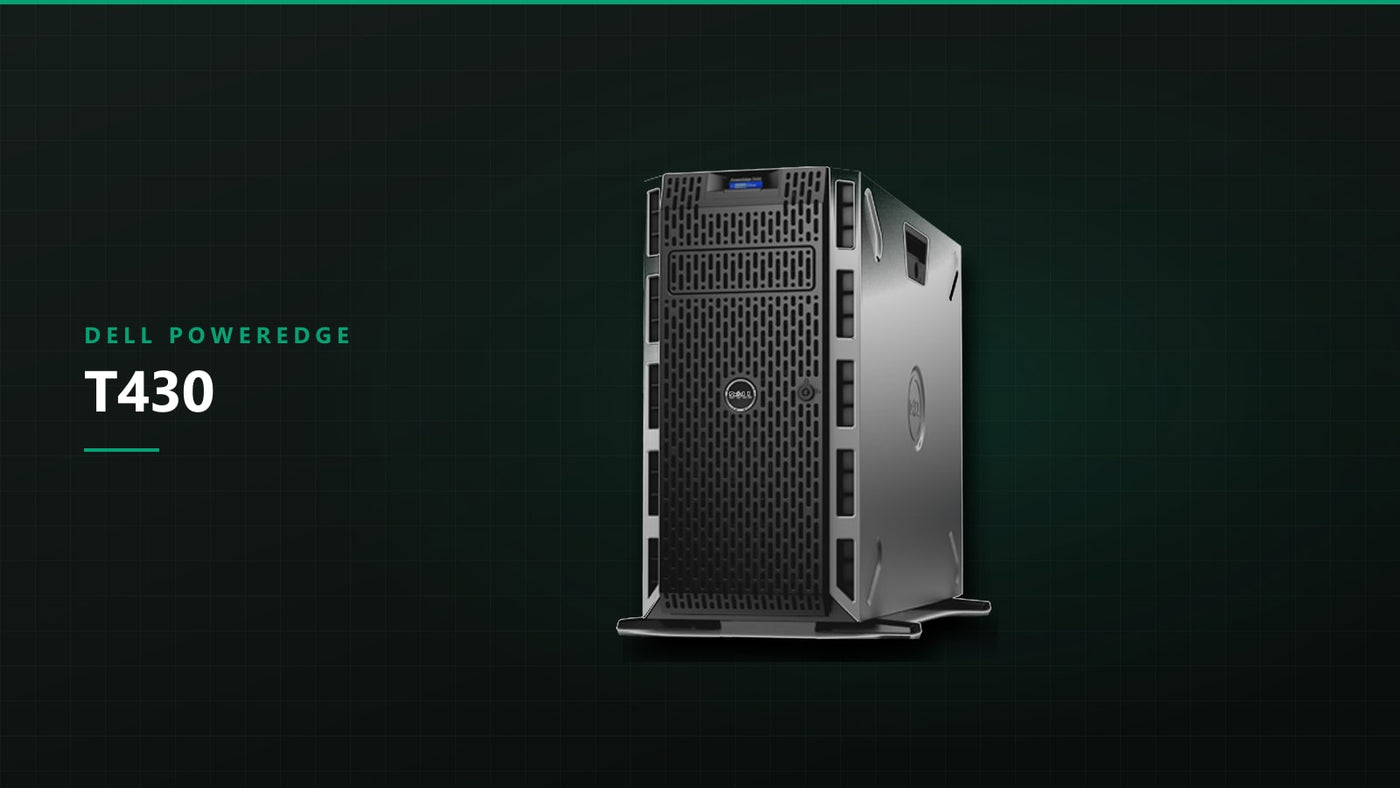

Tower servers: for rooms that were never meant to host servers

A tower server is the right answer far more often than rack purists admit. Towers use larger, slower fans, which makes them dramatically quieter than a 1U or 2U doing the same work. They sit on a floor without rails, they tolerate a dusty office closet better than a dense rack node does, and a mid-range tower runs from an ordinary 120 V receptacle in North America. That last point has a ceiling worth knowing: the largest tower power supplies derate on a 120 V feed and need 200-240 V to deliver their full rated output, so a heavily loaded dual-socket tower is not automatically a wall-outlet machine.

Towers are also generous internally. A tower chassis commonly offers more full-height PCIe slots without risers and more internal drive bays than a 1U of the same generation, because there is simply more volume to work with. For a branch office, a clinic, a workshop, a small studio, or a remote site with one or two servers and no IT staff on the premises, that combination is hard to beat.

Many towers also convert. Vendors sell rack conversion kits that turn the tower into a 4U or 5U rack-mounted unit, which means a single server bought for an office today can move into a cabinet later without being replaced. If you expect to grow into a rack within a few years, confirm that the model you are considering has a conversion kit before you buy. Ask us and we will check it against the specific tower server you are looking at.

Blade systems: infrastructure, not a server

A blade system is a chassis first. The enclosure carries the power supplies, the fans, the management module, and the network and storage interconnects; the blades themselves are compute sleds that plug into that shared backplane. Common enclosures include the HPE BladeSystem c7000 at 10U with up to sixteen half-height blades or eight full-height, the Dell PowerEdge M1000e at 10U with the same sixteen half-height arrangement, the Cisco UCS 5108 at 6U with eight half-width blades, and the Dell PowerEdge MX7000 at 7U with eight single-width sleds.

The payoff is cabling and management. Sixteen servers behind two or four interconnect modules replaces dozens of individual network runs, and provisioning becomes a chassis-level operation. The trade-offs are equally concrete. Local storage per blade is minimal, usually two small-form-factor bays on a half-height sled, so blades effectively require external storage. Firmware becomes coupled across the enclosure. The chassis is a shared failure domain covering power, cooling, and fabric. And a fully populated enclosure weighs several hundred pounds, which affects both floor loading and how you plan to get it into the rack.

The math only works when the enclosure is mostly full. Running four blades in a sixteen-slot chassis means carrying the enclosure's entire power, cooling, and management overhead for a quarter of the compute. If you are confident about eight or more nodes in one location, blade systems are worth evaluating. Below that, discrete rack servers are usually the simpler answer.

Factor	Rack	Tower	Blade
Room requirement	Four-post 19 in cabinet, front-to-back airflow	Floor space in an ordinary room	Data center cabinet, 6-10U contiguous
Typical power feed	Rack PDU on 208 V circuits	120 V receptacle; 208 V for the largest supplies	Multiple high-amperage or three-phase feeds
Noise	High	Low to moderate	High
Local storage	4 to 24+ bays depending on height	8 to 16+ bays common	Typically 2 bays per half-height blade
Network cabling	Per server	Per server	Aggregated in chassis interconnects
Failure domain	Per server	Per server	Shared chassis power, fans, fabric
Sensible node count	1 to hundreds	1 to about 5	8 or more in one location

Five checks to run on the room first

1. Circuits. A 120 V, 20 A circuit derated to 80 percent for continuous load supplies about 1,920 VA. A 208 V, 30 A circuit supplies about 4,990 VA. Inventory what is actually available before you size anything.
2. Temperature. ASHRAE's recommended envelope for data equipment is 18-27 C (64.4-80.6 F). If the room has no dedicated cooling and drifts above that in August, choose a chassis with thermal headroom.
3. Depth and access. Measure interior cabinet depth, rail type (square hole, round hole, or threaded), door swing clearance, and the path from the loading dock, including elevator dimensions.
4. Noise tolerance. Rack and blade hardware runs its fans to full speed during POST. If people work within earshot, that alone rules out a rack in the open.
5. Who touches it. A site with no on-premises technician favors fewer, larger, more serviceable boxes over many dense ones.

Where to go from here

If you have a cabinet and a PDU, start with rack servers. If the machine will live in an office, a shop, or a branch location, look at tower servers and check for a rack conversion kit. If you are consolidating eight or more nodes into one room with proper power and cooling, evaluate blade systems as a whole enclosure rather than blade by blade. When you know the form factor, use Build Your Server to specify CPUs, memory, controller, and drive layout, and send the configuration over with your room constraints noted so we can flag anything that will not fit.
