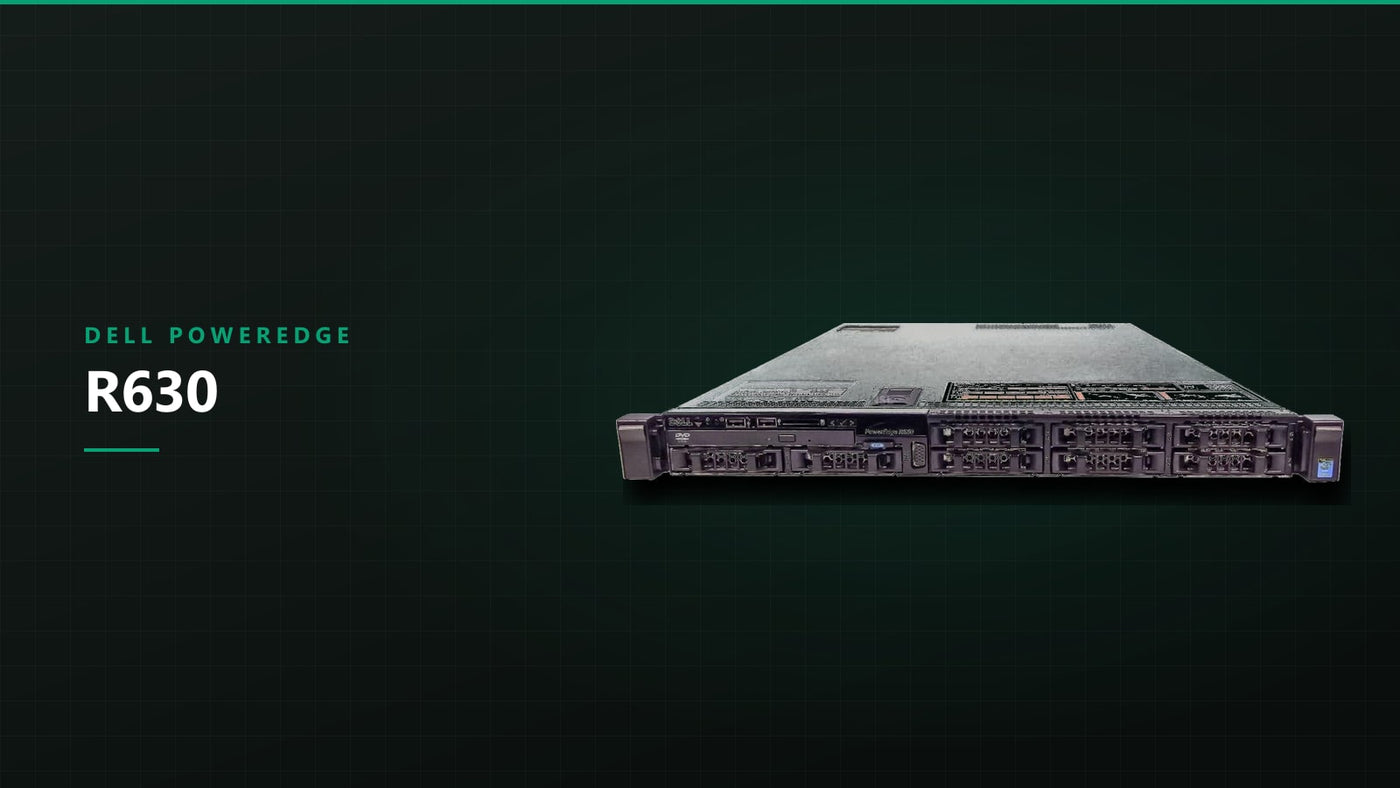

1U vs 2U Servers: What You Give Up for Half the Height

A 1U chassis gives you 1.75 inches of rack height. A 2U gives you 3.5. That single dimension decides how many expansion cards you can fit, how many drives you can spin, how tall a heatsink can sit on the CPU, and how much noise the machine makes when the fan curve ramps. Almost every other difference in the 1U-versus-2U argument follows from it.

Expansion slots: the first wall most people hit

A 1U server accepts low-profile cards only. A full-height bracket is roughly 4.2 inches tall and the chassis is 1.75, so there is no configuration that gets around it. The riser cages sit almost flat, and a typical dual-socket 1U gives you two or three usable riser slots. On most Dell and HPE platforms the storage controller and the primary network adapter do not eat into that number, because they sit in dedicated connectors rather than risers: a mini-mono or modular controller position, and an NDC or OCP slot for networking. The 2U in the same family takes full-height cards across roughly four to eight slots depending on which riser configuration was ordered, and it can accept double-width cards.

That gap matters more than the slot count suggests. In a general-purpose 1U you are working with single-slot, low-profile cards powered from the slot itself, and 75 W is the most a x16 slot can supply. Double-width accelerators, and any card that expects auxiliary power cabling, are a 2U-and-up proposition unless you move to a purpose-built 1U GPU platform, which is a separate product line rather than a configuration option on a standard node. Most 10/25/100 GbE NICs, SAS HBAs, and NVMe adapters ship in low-profile brackets, so networking and storage expansion is usually fine. Compute accelerators are not.

Check the riser rules too. On many platforms the third riser only comes alive when the second CPU is installed, because those lanes originate at socket 2. A single-socket 1U build can end up with fewer usable slots than the spec sheet implies.

Drives: count spindles, not terabytes

A 1U front panel realistically holds four 3.5-inch bays or eight to ten 2.5-inch bays. The 2U of the same generation typically holds eight to twelve 3.5-inch bays or sixteen to twenty-four 2.5-inch bays, and storage-dense variants add mid-plane and rear bays on top of that.

When sizing a virtualization host or a backup repository, count drives rather than capacity. Rebuild time, IOPS ceiling, and how gracefully an array degrades all track spindle count. Hitting a capacity target in 1U with four large nearline drives produces a very different failure profile than hitting the same target in 2U with twelve.

Heat, TDP ceilings, and noise

Thermals are where the height really shows. A 1U heatsink is short, so it moves heat with airflow velocity instead of fin volume, and the fans are smaller in diameter and spin far faster to deliver equivalent airflow. Fan power rises steeply with speed, so a 1U node can spend noticeably more watts on cooling than a 2U doing identical work.

Vendors publish configuration rules that reflect this. The highest-TDP CPUs in a 1U chassis often require a specific high-performance heatsink, a fully populated fan complement, and sometimes carry a lower maximum ambient temperature rating than the same CPU in the 2U sibling. If you intend to run near the top of the TDP range, or the room drifts warm in summer, read the vendor's thermal restriction table before committing to 1U.

Acoustics follow the same curve. A row of 1U servers is a data center appliance, not an office one. If the machine lives in a closet behind a wall someone sits against, 2U will make you fewer enemies.

Attribute	1U	2U
Height	1.75 in (44.45 mm)	3.5 in (88.9 mm)
PCIe cards	Low profile only, 2-3 usable riser slots	Full height, 4-8 slots, double-width capable
Accelerators	Single-slot, slot-powered, 75 W ceiling	Double-width with auxiliary power
Front drive bays (typical)	4 LFF or 8-10 SFF	8-12 LFF or 16-24 SFF
DIMM slots	Usually identical between the 1U and 2U of the same family
Cooling	Small, high-RPM fans, short heatsinks	Larger, slower fans, taller heatsinks
Serviceability	Tight; risers and cables stacked	Room to work, more tool-less parts
Units per 42U cabinet	Up to 42 before switches, PDUs and power limits	Up to 21 on the same basis

Density is limited by power, not by rack units

The standard argument for 1U is that a 42U cabinet holds 42 of them instead of 21. In practice the cabinet's power and cooling envelope runs out first, and switches, patch panels and cable managers take their share of the height as well. A 208 V, 30 A branch circuit derated to 80 percent for continuous load delivers about 4,990 VA, which at the power factor a modern server supply holds works out to a little under 4.9 kW of real power. Feed the cabinet with A and B circuits at that rating for redundancy and the usable figure does not double, because either feed has to be able to carry the whole load alone. Assume 400 W per node and you are full at around a dozen servers, long before you run out of rack units.

Weight is the other quiet limit. Fully populated 2U storage servers are heavy, and a loaded cabinet can exceed what a raised floor tile or an office slab was planned for. Confirm the cabinet's static load rating and the building's floor loading before you fill it. Most of the rack servers we ship are 1U or 2U, and this is the calculation that decides which one leaves the shelf.

Picking one

• Choose 1U when the role is fixed and known, storage is external or modest, you need two or three cards at most, no accelerators are planned, and rack units are scarcer than kilowatts.
• Choose 2U when you want GPUs or other double-width cards, more than ten drives, four or more PCIe cards, top-of-stack CPUs, quieter operation, or simply the option to change the machine's job in three years without replacing the chassis.
• Either way, verify rail type and cabinet depth first. Sliding rails are model specific, and a 2U with cable management can need more depth than an older cabinet allows.

Where to go from here

If you already know the height you need, browse the rack server lineup and filter by drive count and slot layout rather than by CPU alone; the chassis is the part you cannot change later. If you would rather specify the machine from the inside out, use Build Your Server to pick the chassis, CPUs, memory population, controller, and drive layout, then send the configuration over for a quote. If you are unsure whether your workload fits in 1U, list the cards and drives you expect to add over the next two years and send that list along with the request.
