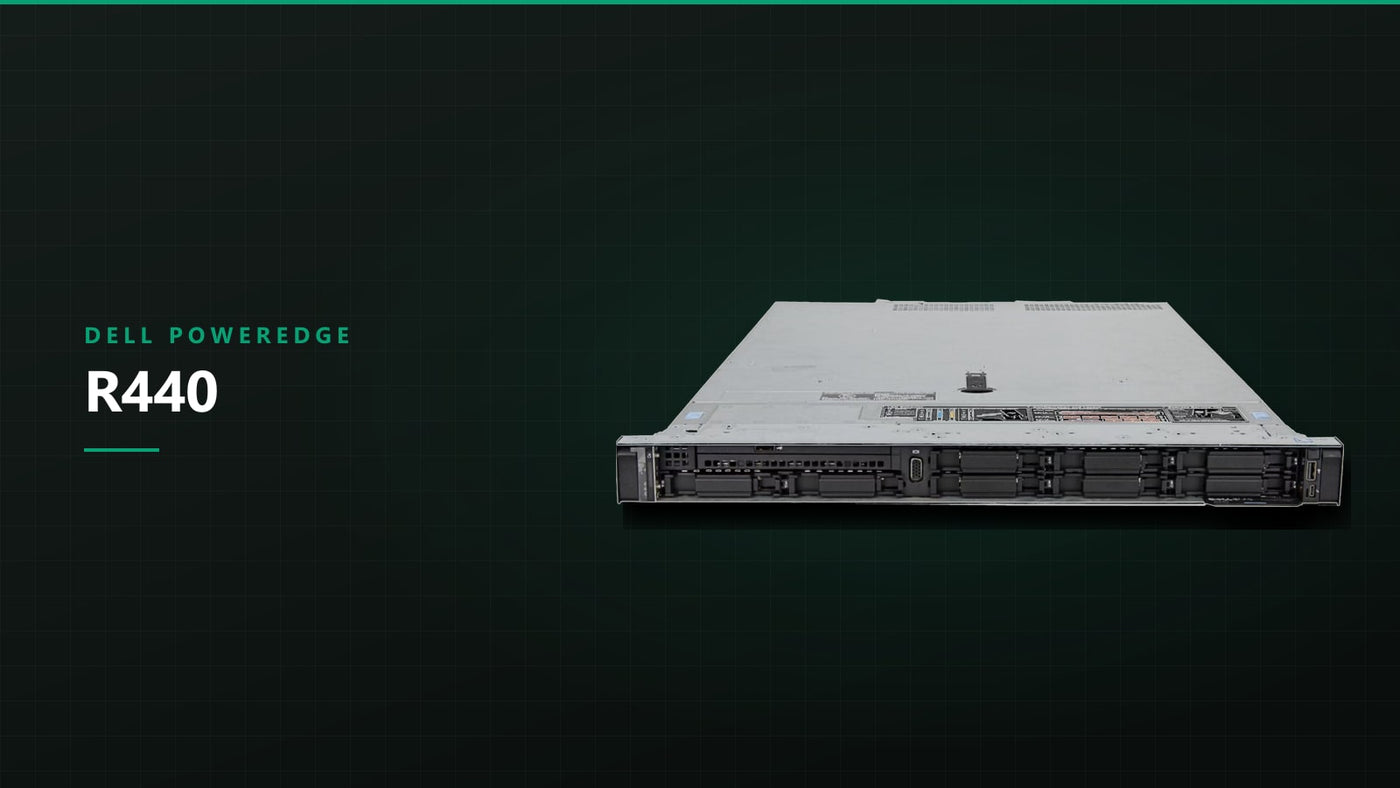

Dell PowerEdge R440: Where the Entry 1U Makes Sense

The PowerEdge R440 is Dell's entry two-socket 1U from the 14th generation, and it is defined as much by what it leaves out as by what it includes. Every constraint is deliberate, and each one is easy to hit. Once you know where the three ceilings sit - processor power, memory slots and expansion slots - the R440 becomes straightforward to place correctly.

The specification that matters

Two LGA 3647 sockets take first- or second-generation Intel Xeon Scalable processors, with a thermal ceiling of 150 W. There are sixteen DDR4 DIMM slots, eight per processor, running at up to 2666 MT/s with first-generation parts and up to 2933 MT/s with the right second-generation ones, for a maximum of 1 TB using 64 GB modules. Storage arrives as up to four 3.5-inch hot-plug bays, up to eight 2.5-inch bays, or up to ten 2.5-inch bays, behind a PERC H330, H730P or H740P, or an HBA330 if the workload wants raw disks. All of those bays are SAS/SATA - the R440 has no NVMe backplane option. A BOSS-S1 card carries two M.2 SATA devices in RAID 1 so the operating system does not consume a front bay. Management is iDRAC9, and power comes from redundant hot-plug 550 W supplies.

Ceiling one: 150 W of processor

This is a real thermal limit in a 1U chassis, not a marketing segment. It removes the 165 W and 205 W Xeon Scalable parts from consideration entirely. In practice the R440 lives comfortably in Silver and mid-range Gold territory, up to roughly twenty cores per socket. That is forty cores and eighty threads in a two-socket machine, which is more than sufficient for infrastructure roles and small hypervisor clusters, and clearly short of what a consolidation host wants.

Ceiling two: eight DIMM slots per socket

Xeon Scalable processors have six memory channels each. Eight slots per socket does not divide evenly across six channels, so the balanced population - one DIMM per channel - is six modules per processor, twelve in the machine. You can fill all sixteen slots for capacity, but two channels per socket then carry twice the load of the others, and memory bandwidth stops scaling cleanly. Size the R440 for twelve balanced DIMMs and treat the last four slots as headroom you can use if capacity matters more than throughput.

Ceiling three: two PCIe slots and two 1 GbE ports

The R440 tops out at two PCIe 3.0 slots, both low profile because the chassis is 1U, and which riser arrives in the box is tied to the drive configuration you order - confirm the two slots are actually present in the configuration you choose. Onboard networking is two 1 GbE ports, and unlike its larger siblings the R440 has no rack network daughter card slot. That combination is the constraint people discover late: moving to 10 GbE or 25 GbE means spending one of the two slots on a NIC. Add a SAS HBA for an external tape or JBOD and the server is full. Plan the slot allocation on paper before ordering, because there is no way to recover a slot later.

How it lines up against its neighbors

	PowerEdge R340	PowerEdge R440	PowerEdge R640
Form factor	1U	1U	1U
Sockets	1 (Xeon E-2100 / E-2200)	2 (Xeon Scalable)	2 (Xeon Scalable)
DIMM slots	4 (UDIMM ECC)	16 (RDIMM / LRDIMM)	24 (RDIMM / LRDIMM)
Maximum memory	64 GB	1 TB	3 TB
Processor TDP ceiling	95 W	150 W	205 W
PCIe 3.0 slots	Up to 2	Up to 2	Up to 3
Network daughter card	No	No	Yes
NVMe front bays	No	No	Yes
Front drive bays	Up to 8 x 2.5" or 4 x 3.5"	Up to 10 x 2.5" or 4 x 3.5"	Up to 10 x 2.5" or 4 x 3.5"

The jump from R440 to R640 is not about cores. It is twenty-four DIMM slots instead of sixteen, a network daughter card that frees a PCIe slot, an NVMe-capable backplane, and a 205 W processor ceiling. If any one of those matters, the R640 is the correct machine and the R440 will frustrate you within a year.

Where the R440 is the right answer

Infrastructure roles fit it precisely: domain controllers, DNS and DHCP, certificate authorities, backup proxies, log collectors, monitoring servers, jump hosts, and small hypervisor hosts running a handful of workloads each. All of these want redundant power, out-of-band management and hot-plug disks. None of them want 3 TB of memory.

Branch offices, remote sites and metered colo space are the other strong case. Where rack units and amps are the resources you are rationed on, a 1U chassis with 550 W supplies is doing exactly what you need it to. The same logic applies to scale-out designs where node count matters more than per-node capacity - several R440s spread a failure domain across more chassis than one large host does.

It is the wrong machine for GPU work, for memory-heavy databases or VDI, for anything expecting NVMe bays, and for any deployment where the network will move to 25 GbE while also needing an HBA. Those requirements point at a 2U chassis or a higher-tier 1U, both of which are well represented in our rack server inventory.

Where to go from here

Start from the slot allocation and the DIMM count, not the processor. If two low-profile cards and twelve balanced DIMMs cover the workload for the next three years, the R440 is a well-judged machine. If either number is tight, move up a tier while you are still choosing rather than after installation.
