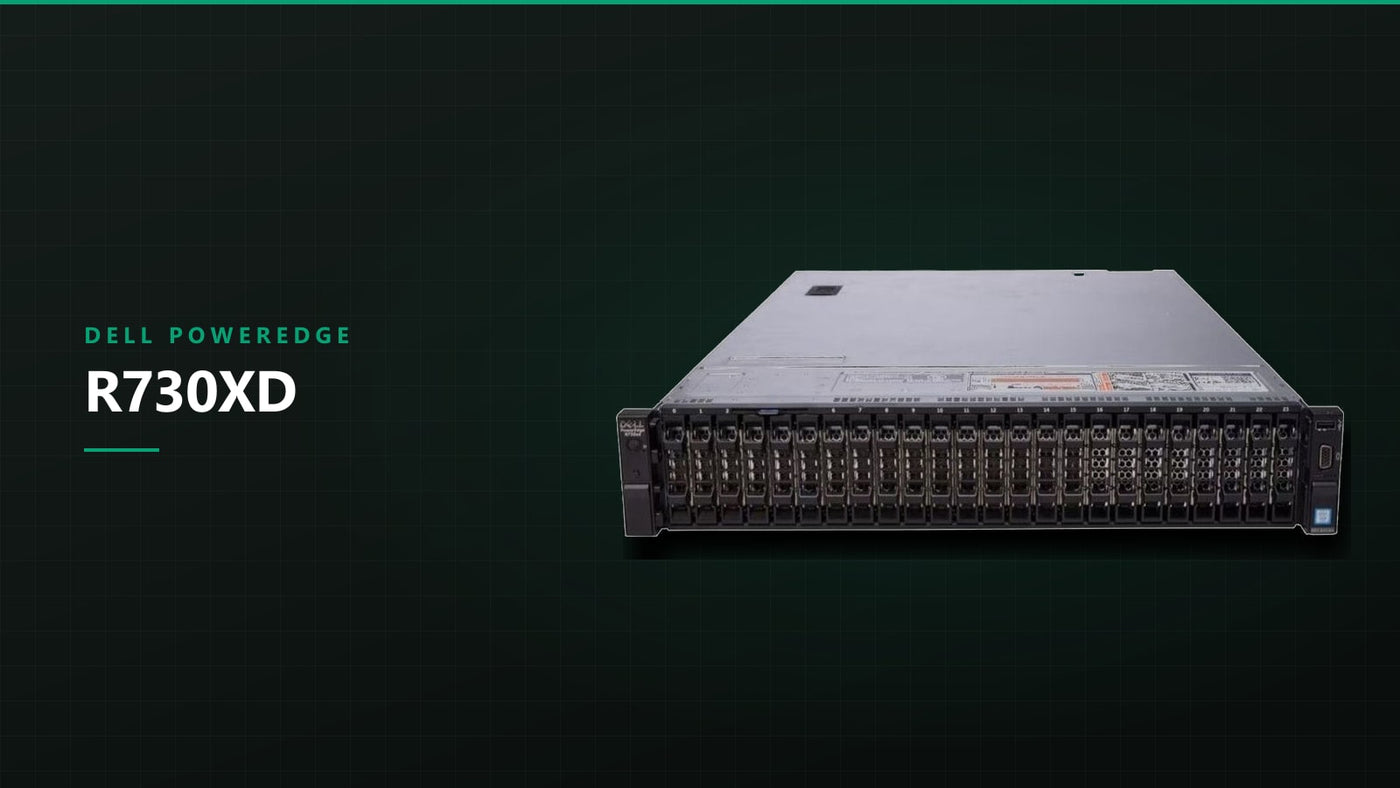

8SFF, 24SFF or 12LFF: How to Pick a Drive Bay Layout

Front bay layout is one of the few things about a rack server you cannot change later without swapping the chassis. Processors, memory and adapters can all be revised in place; the backplane and drive cages cannot. That makes 8SFF, 24SFF and 12LFF a decision worth making deliberately rather than accepting whatever a listing happens to carry.

What the labels mean

SFF is a 2.5" bay, LFF a 3.5" bay, and the number is how many hot-plug bays sit across the front. An 8SFF chassis is either the full front of a 1U server or roughly a third of a 2U front. A 24SFF chassis fills a 2U front with drives standing on edge in a single row. A 12LFF chassis fills the same 2U front as three rows of four 3.5" bays. Other layouts exist, including 4LFF and 10SFF in 1U, 16SFF and 8LFF in 2U, and rear cages that add two or three bays behind the risers, but those three cover most buying decisions.

Bay count is really a backplane decision

A standard internal RAID controller or HBA presents eight ports on two SFF-8643 connectors, which is exactly enough to direct attach eight drives. Anything beyond that requires a 16-port controller, a second controller, or a backplane with a SAS expander on it.

Expanders come with a trade-off. Every drive behind one shares the controller uplink. A x4 12 Gb SAS uplink carries roughly 4.8 GB/s in theory, and dense backplanes are often wired with two of them for about double that, so read the backplane specification rather than assuming. Twelve nearline spindles streaming sequentially at around 250 MB/s each add up to roughly 3 GB/s, which a single x4 uplink can just about absorb and a random workload never approaches. Two dozen SATA SSDs, each capable of roughly 500 MB/s sequential, ask for more than twice what a single x4 uplink carries. For an all-flash build, count uplinks, not bays.

NVMe changes the picture entirely: those bays are wired to PCIe lanes rather than to a SAS expander, so the limit becomes available lanes and switch topology. And if the server is going into a software-defined storage cluster running vSAN, Ceph or ZFS, plan for direct per-device visibility through an HBA and confirm how the backplane reports drive identity and SMART data before you commit to a dense expander design.

Capacity, IOPS and rebuild time

For spinning disk, LFF wins by a wide margin. Nearline 7.2K 3.5" drives now reach into the 20 TB class, so twelve of them puts a couple hundred terabytes raw into 2U. The 2.5" equivalents cap out much lower: 10K SAS at 2.4 TB and 15K SAS at 900 GB.

Flash flips it. Mainstream 2.5" SAS and SATA SSDs are widely available at 3.84 and 7.68 TB, with larger parts above that, so a 24-bay front can carry more flash than a 12-bay LFF chassis and delivers it with far more parallelism. The IOPS gap is not close either: a 7.2K nearline drive manages on the order of 80 random IOPS, so twelve of them is roughly a thousand before RAID write penalties, while a single SATA SSD handles tens of thousands.

Rebuild time is the constraint people underestimate. A 16 TB drive rebuilding at a sustained 150 MB/s needs about 30 hours if nothing else touches the array; under production load, plan on days. That is why large LFF arrays should use RAID 6 or an erasure coding scheme that survives a second failure mid-rebuild, and why a hot spare is not optional. It is also easier to justify a spare on a 24-bay chassis, where one bay is about four percent of the array, than on an eight-bay one, where it is twelve and a half.

Cooling, power and the bays you should not waste

A dense front of drives is also a restriction on intake air. Vendors pair 24-bay configurations with high-performance fan kits and in some cases limit processor TDP, so check the option list for the specific chassis before assuming a top-bin CPU is allowed. Power works out closer than expected: a 3.5" nearline drive draws roughly 6 to 10 W under load while a 2.5" SAS or SATA SSD sits in the low-to-mid single digits under the same conditions, so a full 12LFF and a full 24SFF land in comparable territory. Weight does not: a fully loaded 12LFF 2U is a two-person lift, and a rack full of them is worth checking against the floor and rail ratings.

Dense configurations also eat expansion. A 24-bay build often consumes a PCIe slot for a second controller or expander card, and mid-plane or rear cages take riser space. If the same server needs an accelerator or a pair of dual-port 25GbE adapters, count slots before choosing the densest backplane. Finally, do not spend front bays on the operating system. Rear 2.5" cages, M.2 kits, dual SD modules and internal USB exist precisely so a boot mirror does not consume a quarter of an eight-bay array.

Matching layout to workload

Layout	Suits	Watch for
8SFF	Hypervisor nodes backed by shared storage, application and database servers with modest capacity needs, GPU builds that need slots more than spindles	Low capacity ceiling; boot mirror and hot spare consume a large share of the bays
24SFF	All-flash hyperconverged nodes, VDI, transactional databases, dense virtualization	Expander uplink bandwidth, controller port count, fan kit requirements and possible CPU TDP limits
12LFF	Backup repositories, archive and object storage, video and surveillance retention, HDD storage pools	Multi-day rebuild windows, low random IOPS, chassis weight

A useful hybrid is the 12LFF chassis with a rear two-bay cage: bulk capacity up front, a mirrored SSD pair at the back for the operating system, metadata or a cache tier. It is the standard shape for a backup repository and avoids sacrificing any of the large bays.

Where to go from here

Filter the rack server inventory by the layout you settled on rather than by model name; the same platform is usually available in several bay configurations, and the backplane is the part you cannot change later. If you already know the bay count, controller mode and drive types you want, specify it on Build Your Server and send the configuration over for a quote.
